InfiRay Jerry C/E-5

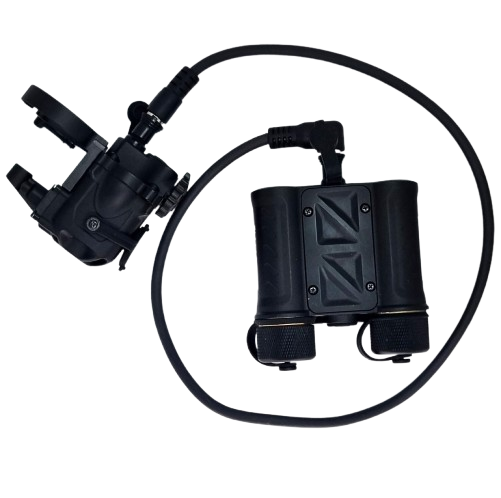

nfiRay Jerry C-5 - Thermal Clip-On for Night Vision Devices

The InfiRay Jerry C-5 is an advanced thermal clip-on device that attaches to existing night vision goggles, combining standard night vision with thermal signatures. The device uses a thermal sensor to project an image that highlights heat signatures directly onto the night vision lens, creating a "fusion" night vision system—a combination of standard night vision with thermal imaging.

This system enhances detection capabilities in dark environments, adding a critical layer of information for identifying objects. There are three operating modes:

1. Edge Highlight – emphasizes thermal outlines.
2. White Hot – hot areas appear in white.
3. Black Hot – hot areas appear in black.

Additionally, the sensitivity level, image brightness, and pulse mode can be adjusted for optimal user customization.

The device comes in two models:

• C-5 – powered by a CR123a battery.
• CE-5 – powered by two 18650 batteries mounted in a battery pack on the back of the helmet, providing longer operation time and better weight distribution for improved balance during extended use.

Model: C5
Resolution: 640x512Pixel
Pitch: 12um
Spectral Band:8~14um
Lens Focal Lengthf: 11.52
FOV: 30.5
Display Mode: White Hot/ Highlight/ Outline Display Functions: Normal on/ Breathing
Brightness Functions: Support
Brightness Adjustment: Support
Auto Brightness: Support
Shutter Correction: Support
Contrast Adjustment: Support
Threshold Adjustment: Support
Menu Rollover: Support
Data: RS232VideoPAL
Power Supply Mode: 17335/ 18500/ 18650
Operting Temperature: /-40c ~ +60c
IP Grade: IP67
Weight: 110g
